使用企业容器镜像仓库Harbor
Docker

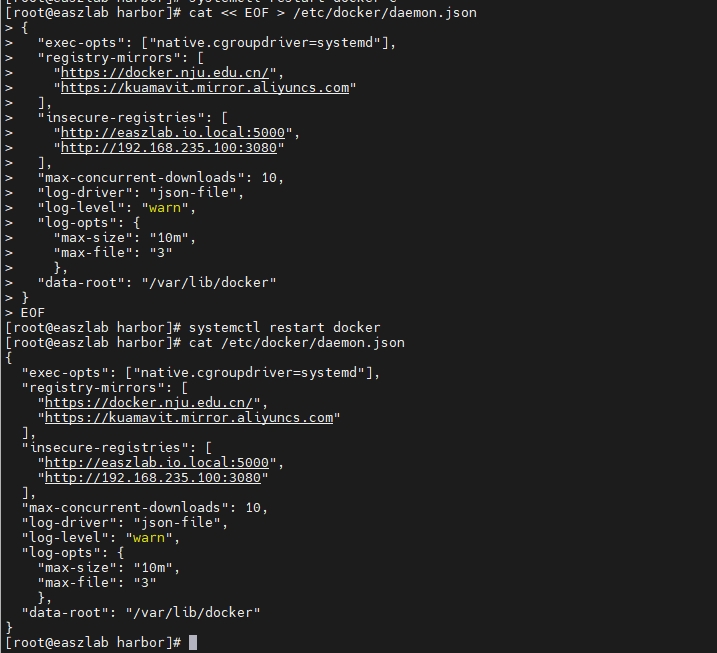

配置Harbor仓库
shell
cat << EOF > /etc/docker/daemon.json
{
"exec-opts": ["native.cgroupdriver=systemd"],
"registry-mirrors": [
"https://docker.m.daocloud.io",
"https://kuamavit.mirror.aliyuncs.com"
],
"insecure-registries": [
"http://easzlab.io.local:5000",
"192.168.235.100:3080"
],
"max-concurrent-downloads": 10,
"log-driver": "json-file",
"log-level": "warn",
"log-opts": {
"max-size": "10m",
"max-file": "3"
},
"data-root": "/var/lib/docker"
}
EOF
systemctl daemon-reload
systemctl restart docker
镜像上传测试
shell
docker pull registry.cn-hangzhou.aliyuncs.com/zhengqing/redis:7.0.5
# admin/Harbor12345
docker login 192.168.235.100:3080

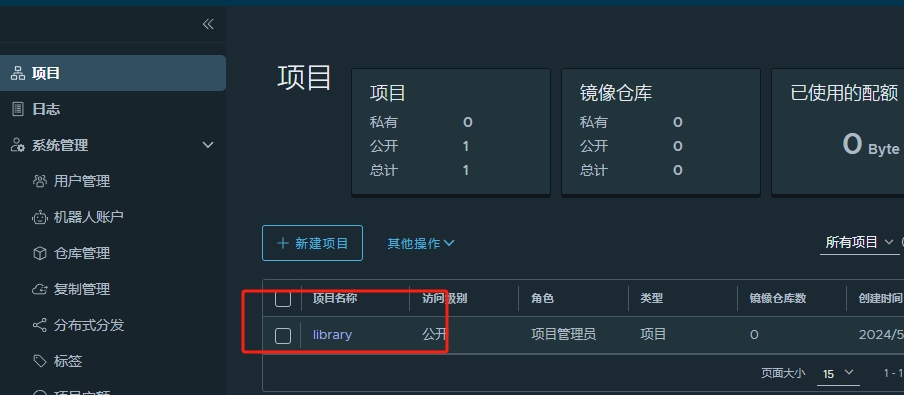

# 这里的 library 是harbor仓库里默认自带的项目
docker tag registry.cn-hangzhou.aliyuncs.com/zhengqing/redis:7.0.5 192.168.235.100:3080/library/odboy/redis:7.0.5

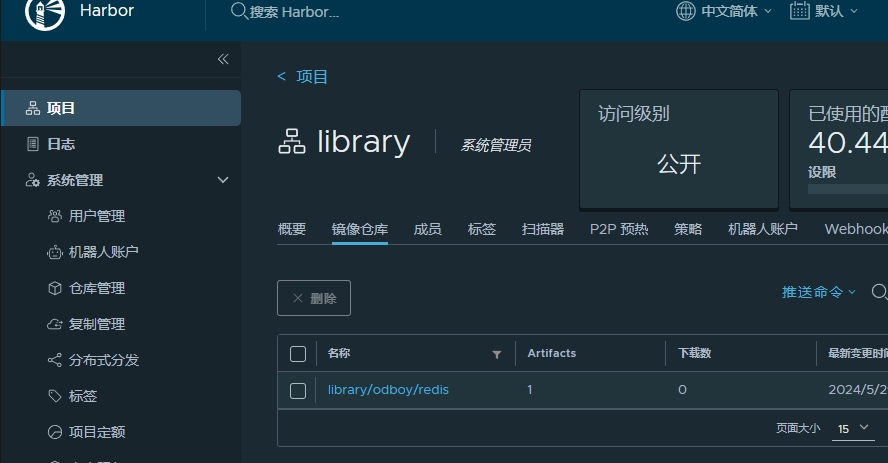

shell
docker push 192.168.235.100:3080/library/odboy/redis:7.0.5
K8s

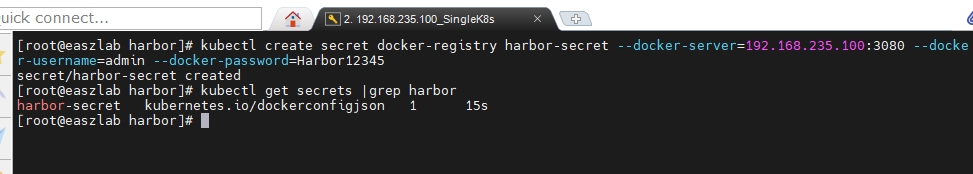

配置Harbor Secret
shell
# 类型为docker-registry
# docker-server指定harbor仓库的IP
# docker-username指定harbor仓库的登录用户名
# docker-password指定harbor仓库的登录密码
kubectl create secret docker-registry harbor-secret --docker-server=192.168.235.100:3080 --docker-username=admin --docker-password=Harbor12345
创建 redis pod 并使用 Secret
yaml
kind: ConfigMap
apiVersion: v1
metadata:
name: harbor-pull-test
data:
redis.conf: |
protected-mode yes
bind 0.0.0.0
port 6379
tcp-backlog 511
timeout 0
tcp-keepalive 300
daemonize no
pidfile /data/redis-server.pid
loglevel notice
logfile /data/redis.log
databases 100
always-show-logo yes
set-proc-title yes
proc-title-template "{title} {listen-addr} {server-mode}"
stop-writes-on-bgsave-error yes
rdbcompression yes
rdbchecksum yes
dbfilename dump.rdb
rdb-del-sync-files no
dir /data
replica-serve-stale-data yes
replica-read-only yes
repl-diskless-sync yes
repl-diskless-sync-delay 5
repl-diskless-sync-max-replicas 0
repl-diskless-load disabled
repl-disable-tcp-nodelay no
replica-priority 100
acllog-max-len 128
lazyfree-lazy-eviction no
lazyfree-lazy-expire no
lazyfree-lazy-server-del no
replica-lazy-flush no
lazyfree-lazy-user-del no
lazyfree-lazy-user-flush no
oom-score-adj no
oom-score-adj-values 0 200 800
disable-thp yes
appendonly no
appendfilename "appendonly.aof"
appenddirname "appendonlydir"
appendfsync everysec
no-appendfsync-on-rewrite no
auto-aof-rewrite-percentage 100
auto-aof-rewrite-min-size 64mb
aof-load-truncated yes
aof-use-rdb-preamble yes
aof-timestamp-enabled no
slowlog-log-slower-than 10000
slowlog-max-len 128
latency-monitor-threshold 0
notify-keyspace-events ""
hash-max-listpack-entries 512
hash-max-listpack-value 64
list-max-listpack-size -2
list-compress-depth 0
set-max-intset-entries 512
zset-max-listpack-entries 128
zset-max-listpack-value 64
hll-sparse-max-bytes 3000
stream-node-max-bytes 4096
stream-node-max-entries 100
activerehashing yes
client-output-buffer-limit normal 0 0 0
client-output-buffer-limit replica 256mb 64mb 60
client-output-buffer-limit pubsub 32mb 8mb 60
hz 10
dynamic-hz yes
aof-rewrite-incremental-fsync yes
rdb-save-incremental-fsync yes
jemalloc-bg-thread yes
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: pod-harbor-pull-redis
spec:
selector:
matchLabels:
app: pod-harbor-pull-redis
strategy:
type: Recreate
template:
metadata:
labels:
app: pod-harbor-pull-redis
spec:
containers:
- image: 192.168.235.100:3080/library/odboy/redis:7.0.5
imagePullPolicy: IfNotPresent
name: pod-harbor-pull-redis
env:
- name: TZ
value: Asia/Shanghai
- name: LANG
value: en_US.UTF-8
ports:
- name: svc-redis-1m0s
containerPort: 6379
livenessProbe:
tcpSocket:
port: 6379
readinessProbe:
tcpSocket:
port: 6379
resources:
limits:
cpu: "1"
memory: "1G"
requests:
cpu: "1"
memory: "512Mi"
volumeMounts:
- name: vod-pv-single-redis
mountPath: /data
- name: vod-cm-single-redis
mountPath: /etc/redis/redis.conf # 将其挂载到容器的/etc/redis/redis.conf路径下
subPath: redis.conf
command: [ "redis-server" ,"/etc/redis/redis.conf", "--requirepass 123456", "--appendonly no" ]
imagePullSecrets: # 定义镜像下载使用的secret
- name: harbor-secret # 与上面的secret一致
volumes:
- name: timezone
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
- name: vod-pv-single-redis
hostPath:
path: /mnt/data/pod-harbor-pull-redis # /data目录挂载到宿主机的/mnt/data/pod-single-redis目录
type: DirectoryOrCreate
- name: vod-cm-single-redis
configMap:
name: harbor-pull-test
items:
- key: redis.conf
path: redis.conf执行命令

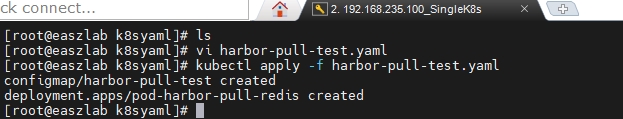

shell
# 把上面的yaml内容写到 harbor-pull-test.yaml 文件中
kubectl apply -f harbor-pull-test.yaml

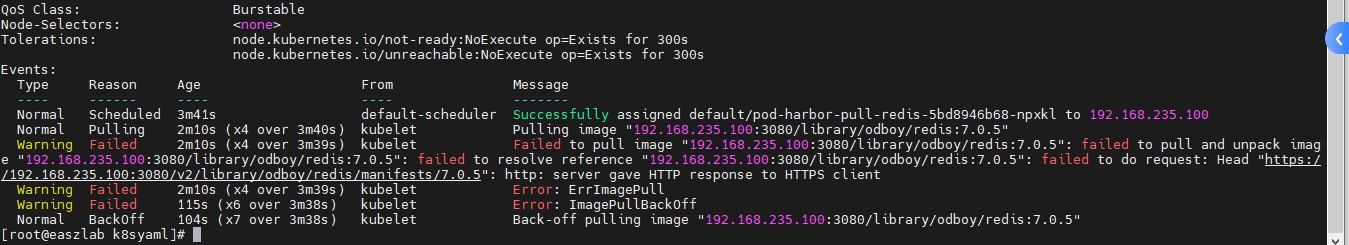

Pod状态 显示 ImagePullBackOff，这应该是拉镜像失败了，describe看看
Failed to pull image "192.168.235.100:3080/library/odboy/redis:7.0.5": failed to pull and unpack image " 192.168.235.100:3080/library/odboy/redis:7.0.5": failed to resolve reference "192.168.235.100: 3080/library/odboy/redis: 7.0.5": failed to do request: Head "https://192.168.235.100:3080/v2/library/odboy/redis/manifests/7.0.5": http: server gave HTTP response to HTTPS client
这个时候我们去配置 containerd 即可。

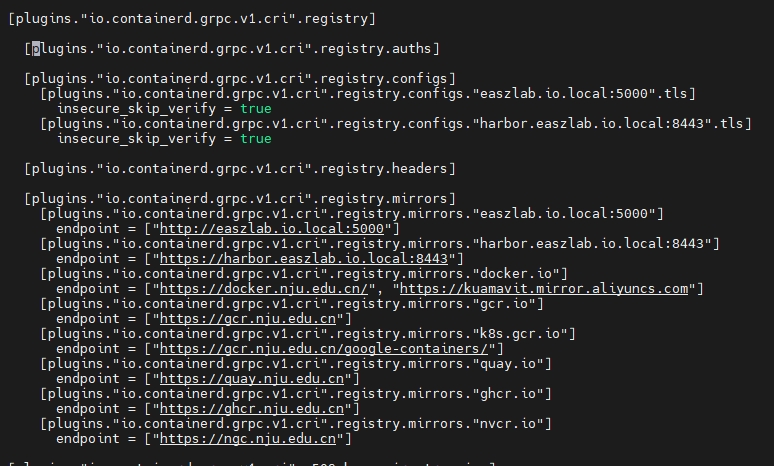

配置containerd[所有节点都要配置]
shell
vi /etc/containerd/config.toml
# --------------------------------
# 搜索配置 plugins."io.containerd.grpc.v1.cri".registry
在配置项 [plugins."io.containerd.grpc.v1.cri".registry.configs] 下，增加两行配置：
toml
[plugins."io.containerd.grpc.v1.cri".registry.configs."192.168.235.100:3080".tls]
insecure_skip_verify = true
[plugins."io.containerd.grpc.v1.cri".registry.configs."192.168.235.100:3080".auth]
username = "admin"
password = "Harbor12345"在配置项 [plugins."io.containerd.grpc.v1.cri".registry.mirrors] 下，增加一行配置：
toml
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."192.168.235.100:3080"]
endpoint = ["http://192.168.235.100:3080"]局部完整配置如下：
toml
[plugins."io.containerd.grpc.v1.cri".registry]
[plugins."io.containerd.grpc.v1.cri".registry.auths]
[plugins."io.containerd.grpc.v1.cri".registry.configs]
[plugins."io.containerd.grpc.v1.cri".registry.configs."easzlab.io.local:5000".tls]
insecure_skip_verify = true
[plugins."io.containerd.grpc.v1.cri".registry.configs."harbor.easzlab.io.local:8443".tls]
insecure_skip_verify = true
[plugins."io.containerd.grpc.v1.cri".registry.configs."192.168.235.100:3080".tls]
insecure_skip_verify = true
[plugins."io.containerd.grpc.v1.cri".registry.configs."192.168.235.100:3080".auth]
username = "admin"
password = "Harbor12345"
[plugins."io.containerd.grpc.v1.cri".registry.headers]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."easzlab.io.local:5000"]
endpoint = ["http://easzlab.io.local:5000"]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."192.168.235.100:3080"]
endpoint = ["http://192.168.235.100:3080"]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."harbor.easzlab.io.local:8443"]
endpoint = ["https://harbor.easzlab.io.local:8443"]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]
endpoint = ["https://docker.nju.edu.cn/", "https://kuamavit.mirror.aliyuncs.com"]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."gcr.io"]
endpoint = ["https://gcr.nju.edu.cn"]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."k8s.gcr.io"]
endpoint = ["https://gcr.nju.edu.cn/google-containers/"]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."quay.io"]
endpoint = ["https://quay.nju.edu.cn"]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."ghcr.io"]
endpoint = ["https://ghcr.nju.edu.cn"]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."nvcr.io"]
endpoint = ["https://ngc.nju.edu.cn"]
重启containerd并查看状态[所有节点都要配置]
shell
systemctl restart containerd
systemctl status containerd验证pod
shell
kubectl delete pod $(kubectl get pod -A |grep harbor|awk '{print $2}')
kubectl describe pod $(kubectl get pod -A |grep harbor|awk '{print $2}')
就是这么简单。
